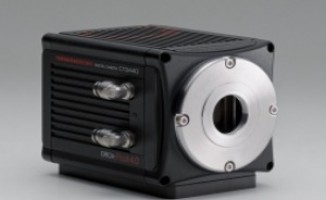

ORCA-Flash4.0 V3

具有sCMOS晶片的Hamamatsu V3，專為科研應用設計。 與ORCA-Flash4.0相比，其解析度與靈敏度（特別是在近紅外區域）的提升，給予生物研究領域跨級別的螢光影像品質。

Effective no. of pixels
2048 (H)×2048 (V)
Readout speed
100 frames/s
Readout noise
0.8 electrons
Highest dynamic range
37 000:1

Hamamatsu ORCA-Flash4.0 V3 高階螢光影像系統

基於Hamamatsu在高性能科研相機的專業及高級成像應用的豐富經驗，推出新型 ORCA-Flash4.0 V3，Hamamatsu V3。無論在擷取精美的科學圖像，還是需要檢測、定量和速度等各種實驗應用， ORCA-Flash4.0 V3都能應付自如。具備板載FPGA處理功能，可實現智能數據縮減、高精度相機內像素校正、更高的USB3.0傳輸效率  (Frame rate)、針對性及創新的觸發功能 (triggering capabilities)、獲得專利的層光/光切片 (Lightsheet)讀出模式和單獨的相機雜訊特性化，是具有影響力的精密儀器。

生物領域的Hamamatsu OCRA-Flash4.0 V3

Hamamatsu ORCA-Flash4.0 V3被定位高階螢光感測器。與常規CCD/CMOS相較，V3能夠有多倍的感光提升。能用更短曝光時間，收集成像所需螢光訊號。從而降低螢光的光漂白現象 (Photobleaching), 及達成即時成像 (Real-time Imaging)。此外，V3具備超高的動態範圍，除了能更完美地呈現螢光亮暗細節的層次，也能接受更大範圍的螢光訊號變化。Hamamatsu精細的雜訊校正，為生物螢光拍攝提供了極低噪訊背景。大量拉高 Signal-to-noise ratio (SNR)，讓更微弱的訊號能與雜訊有更明顯對比。除了基礎螢光研究，V3更是常用於進階螢光應用：單分子成像 (single molecule imaging) 或超解析顯微鏡成像 (super resolution microscopy imaging)。



Features

  • Calibrated for Quantitative Accuracy
  • Flexibility for Customized Data Control
  • Patented Tools for Advanced Imaging: Lightsheet Readout Mode
  • Focus on the Relevant Data
  • Powerful Triggering for Synchronizationa



Lightsheet Readout Mode [Patented]

“Lightsheet Readout Mode”



is a unique and patented feature of Hamamatsu sCMOS cameras which can improve signal to noise ratios in Lightsheet microscopy. For more information about the principle and features of Lightsheet Readout Mode, please see details from below.

What is Lightsheet Readout Mode?





Lightsheet Readout Mode



Movie gallery

3D animation of Amoeba scanned by DSLM



GFP-labeled zebrafish blood flow



High speed (400 fps) zebrafish cardiac beat



iPS cardiomyocyte membrane voltage dynamics (high resolution)



Localization microscopy acquisition



Dynamic movement of shrimp swimmeret



Spinning disk confocal pollen z scan images



Filopodial protrusion dynamics



High-speed intracellular Ca gradient driven by UTP stimulation



Microtubule growth dynamics TIRF



PKC translocation driven by TEA stimulation



High-speed Ca imaging of iPS cardiomyocyte



PC recommendations

With the introduction of the ORCA-Flash4.0, users are now able to stream 4 megapixel images to their computers 100 frames per second. The computer recommendations for this high data rate can be met by using the guidelines listed this PC Recommendations for ORCA-Flash4.0.

PC Recommendation for ORCA-Flash4.0 V3/LT+ [1 MB/PDF]



Specifications

Spectral response



Dimensions

說明 檔案大小 下載
ORCA-Flash4.0 V3型錄(新功能說明) 123KB
ORCA-Flash4.0 V3型錄 (For lifescience) 123KB
Technical note 123KB
PC Recommendations for ORCA-Flash4.0 V3 123KB
型號 概述 詢價數量
