ORCA-Fusion Digital sCMOS camera, 高感度相機(高靈敏度相機) , 科研相機

ORCA-Fusion平衡了相機功能的複雜細微差別,可在所有燈光下提供精美的圖像和強大的數據,尤其是在低光條件下。


Effective no. of pixels
2304(H)×2304(V)
Readout speed
100 frames/s
Readout noise
0.7 electrons
Dynamic range
21 400 : 1


ORCA-Fusion,具有第三代sCMOS晶片Hamamatsu sCMOS感測器。

在晶片讀出的設計上,進行了次世代的優化。

大量降低因讀出產生的雜訊及噪點,讓螢光在極低背景的條件下被偵測。

即使是微弱訊號的細節變化也能以更可靠的形式被量化。



Hamamatsu 說 “When you want to hear a whisper it’s best to be in a quiet place.”

Special sites

The scientific camera section is the feature section for digital cameras fit to life science research and industry areas.



Special site for Scientific cameras

Features

  • High resolution : 2304 x 2304 (5.3 Megapixels)
  • High speed : 100 frames/s (at 2304 X 2048 ROI)
  • Dynamic range : 21,400:1
  • Pixel size : 6.5 μm X 6.5 μm
  • Read noise : 0.7 electrons, rms (Ultra-quiet Scan)
  • Prnu : 0.06 % rms (@ 7500 electrons)
  • DSNU : 0.3 electrons rms
  • Peak QE : 80 %
  • Patented Tools for Advanced Imaging: Lightsheet Readout Mode

Lightsheet Readout Mode [Patented]

“Lightsheet Readout Mode” is a unique and patented feature of Hamamatsu sCMOS cameras which can improve signal to noise ratios in Lightsheet microscopy.
For more information about the principle and features of Lightsheet Readout Mode, please see details from below.

What is Lightsheet Readout Mode?



Lightsheet Readout Mode

PC recommendations

With the introduction of the ORCA-Fusion, users are now able to stream 5 megapixel images to their computers 89 frames per second. The computer recommendations for this high data rate can be met by using the guidelines listed this PC Recommendations for ORCA-Fusion.



Specifications

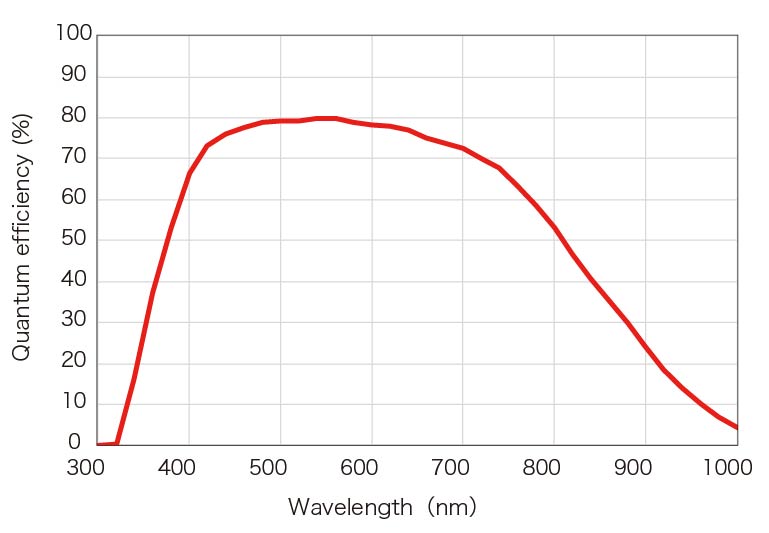

Spectral response

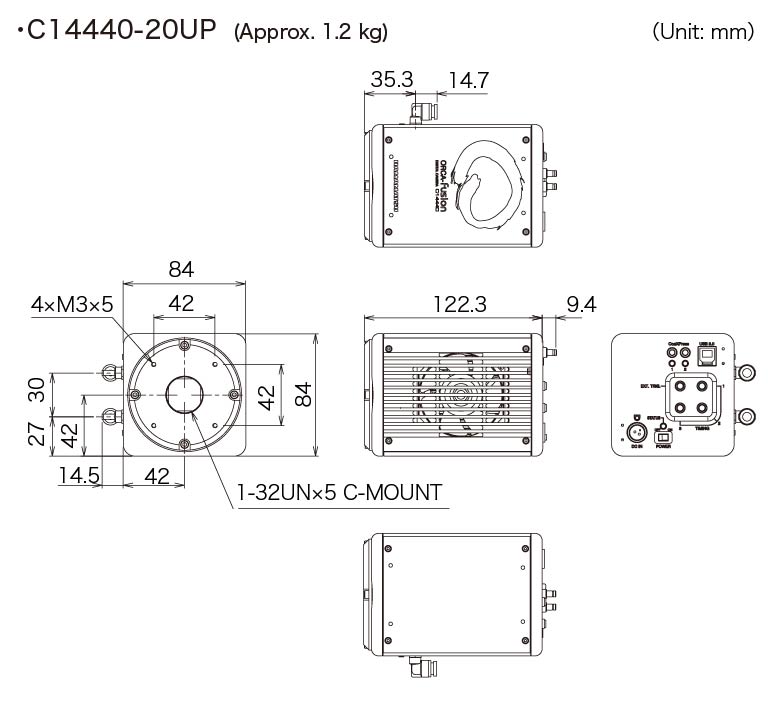

Dimensions

說明 檔案大小 下載
ORCA-Fusion Technical note 123KB
ORCA-Fusion 產品型錄 123KB
型號 概述 詢價數量
