CYTOQUBE Light-Sheet Microplate Cytometer
CYTOQUBE is a Light-Sheet Microplate Cytometer that performs high-speed fluorescence imaging and analysis for both 2D and 3D cell-cultured samples. It is capable of scanning 1536, 384 and 96 well microplates, acquiring whole-well 3D fluorescence images.

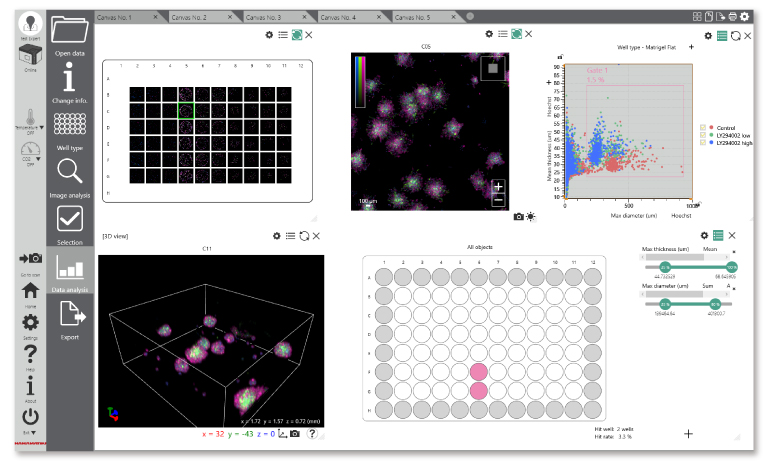

During the image acquisition process, fluorescence intensity and 3D morphological information of the objects (cells, spheroids, or organoids) are analyzed, and the results are displayed upon completion of the scan.
Three key features
CYTOQUBE has the following three features:
- High-throughput
- Simple scanning and analysis settings
- Enhanced realism and accuracy in 3D fluorescent imaging
These features contribute to the promotion of translational research and increase the efficiency of drug screening, toxicology, and safety assessment.

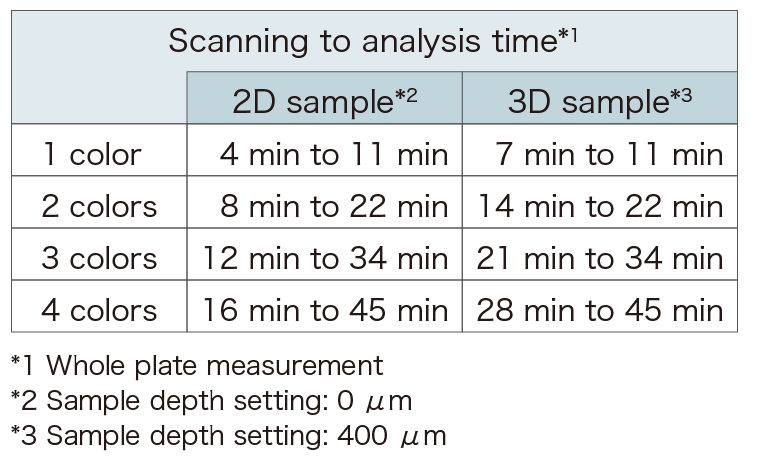

Rapid scanning speed
Acquire whole-well and whole-plate fluorescence images within a few minutes per color, regardless of plate format (1536, 384, 96 wells) or sample depth.

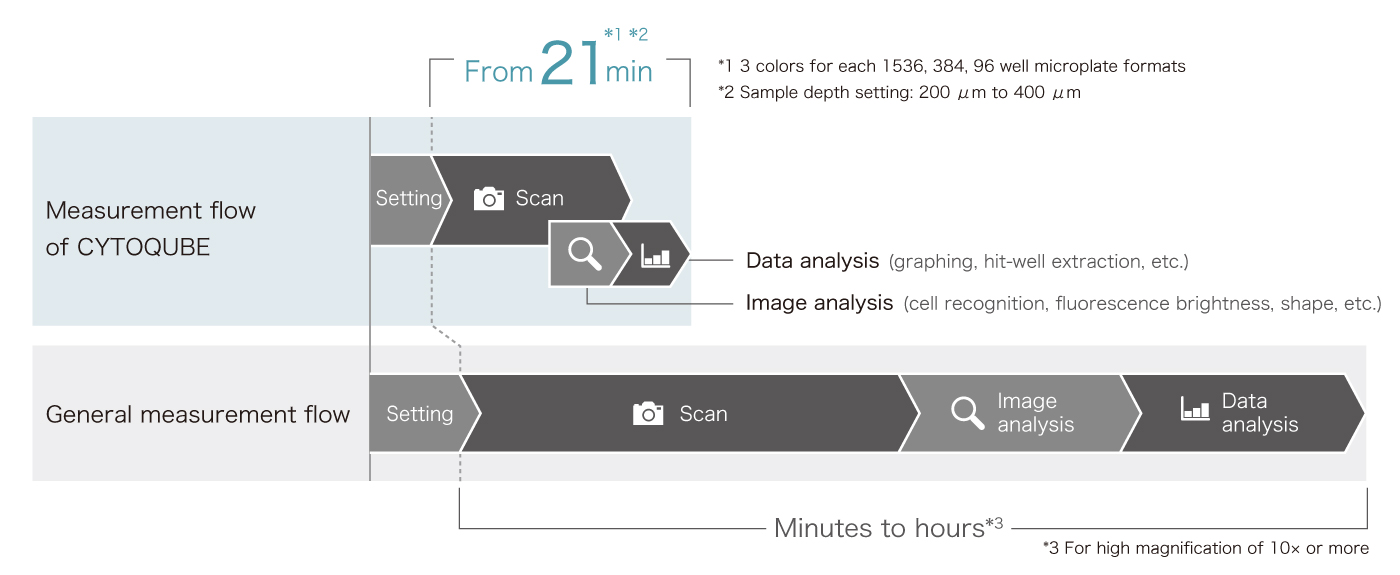

Parallel processing for scanning and analysis
The parallel processing of fluorescence image construction and image analysis has significantly shortened the time from scan start to data analysis result output.

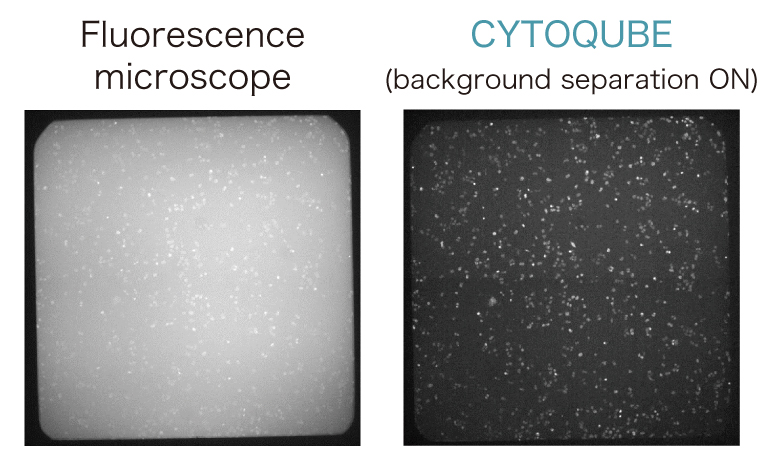

Real-time background separation
Background fluorescence, derived from autofluorescence of the culture medium or fluorescent dyes in the solution, and fluorescence from the sample are separated from the acquired XZ tomographic fluorescence images, in real-time, effectively removing only the background fluorescence in three dimensions.
